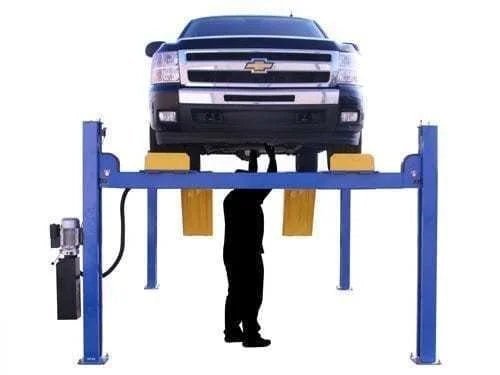

The Atlas 414 is a 4 post lift with 14,000 pounds of lift capacity designed for commercial use.

This lift is designed and built to commercial grade standards and will provide many years of service.

The Atlas 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift.

Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

Finally, the Atlas 414 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ8000BK) on the lift. Rolling jacks sold separately.

Features & Benefits

• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Diamond Plated Runways
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• 5 yr Structural – 2 yr Hydraulic Warranty

Atlas ATTD-414 Specifications

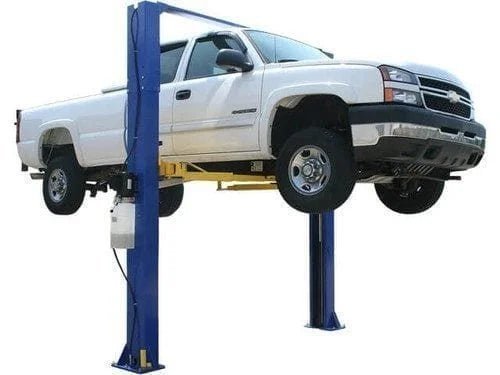

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.

• 9,000 lb. Capacity
• Overhead, Open-Floor design
• Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)
• Asymmetric/Symmetric Arms
• Automatic Arm Restraints
• Dual-Point Lock Release
• Rubber Guards on Carriages
• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System
• Free 8 Piece Truck Adapter Set
• Free set of Sliding Arm Adapters
• Mounting Hardware Included
• Shipping Weight: 1,450 lbs.
• 2 yr Structural – 1 yr Hydraulic Warranty

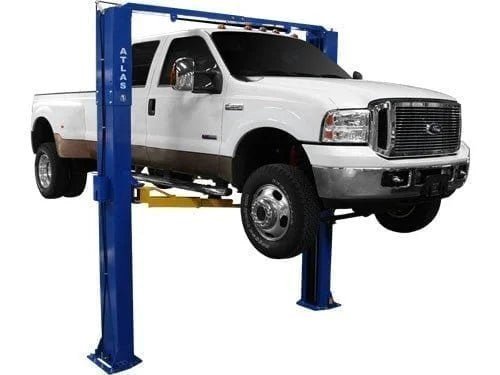

The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models. Whether you are an automotive shop or working on personal vehicles from your home, the PV10PX is the industry standard!

The commercial grade Atlas® PV10PX two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

This lift is the perfect choice for use in either a large commercial service department or for the “pole barn” owner who wants the “biggest and baddest” lift in the country. The Atlas® PV10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one ton diesel dually. This lift incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with rubber protective covers (size may vary) to help prevent the vehicle’s doors from damage if opened into the columns or carriages. The PV10PX also includes a deluxe truck adapter set (12 pieces vs. the standard 8 pieces) and the rubber lift pad that has been reinforced to ensure a solid contact with the vehicle’s lifting points.

• 10,000 lb. capacity
• Commercial Grade
• Adjustable Height – 11′ 11 1/8″ or 12’3″
• Asymmetric/Symmetric Arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Padded Carriages
• Single Point Lock Release
• Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,905 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

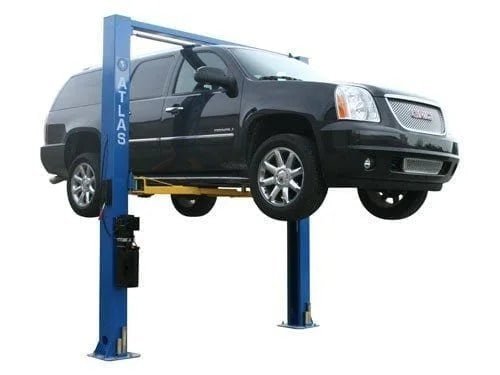

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities

• 9,000 lb. Capacity
• Overhead, Open-Floor Lift
• Single-Piece Column Design
• Overall Height: 142″ (11′ 10″)
• 3-Stage Front Arms/2-Stage Rear Arms
• Automatic Arm Restraints
• Single-Point Lock Release
• Rubber Guards on Carriages
• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,430 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty

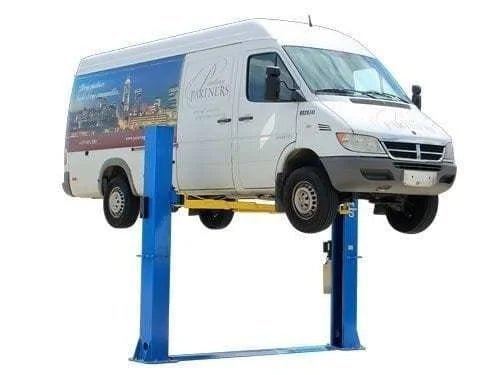

The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns.

If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Features & Benefits

• 10,000 lb. Capacity
• Commercial Grade
• Baseplate, Open-Top Style Lift
• Overall Height: 111 7/8″ (9′ 3 7/8″)
• Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
• Super-Symmetric Arms
• Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
• Welded Support Gussets Increase Column Strength.
• Automatic Arm Restraints
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• 5 yr Structural – 2 yr Hydraulic Warranty

Atlas ATTD-BP10000X Specifications
